3500W Household High Pressure Car Washing Machine Portable Washer Car Cleaner Water Gun Foam Generator Tornado Auto Accessories. COLOR: Package B. 3500W. High Pressure Gun, Extension Rod, 3m Inlet Pipe, 15m steel wire explosion-proof Outlet Pipe, Faucet Connector, Self-Priming Filter, Quick Connector, Outlet copper Quick Connector, Foam Generators. Water Brush. 220V/230V.

Product Features:

1.3600W upgrade industrial grade noise reduction pure copper motor
2. Pure sheet metal body, industrial standard
3. Induction brushless motor
4. Super strong water output 720L/H
5.3 seconds quick water
6. Accurate visualization of pressure gauge
7. Adjustable water pressure, suitable for more scenarios
8. Switch the gun to stop
9. Automatic protection of overheating and overload, intelligent adjustment of water pressure
10. High-quality composite high-pressure explosion-proof pipe

Product Details

3600W industrial grade large motor

Motor size determines power size determines water pressure

Our motor is an industrial-grade large motor with a bare metal 9.5kg, and has an industrial-grade noise reduction pure copper motor

About smart chips

Intelligent temperature control induction system for high temperature power failure protection
Automatic protection of overheating and overload, intelligent adjustment of water pressure

Pressure adjustment methods

Rotating pressure adjustment of car wash water gun nozzle

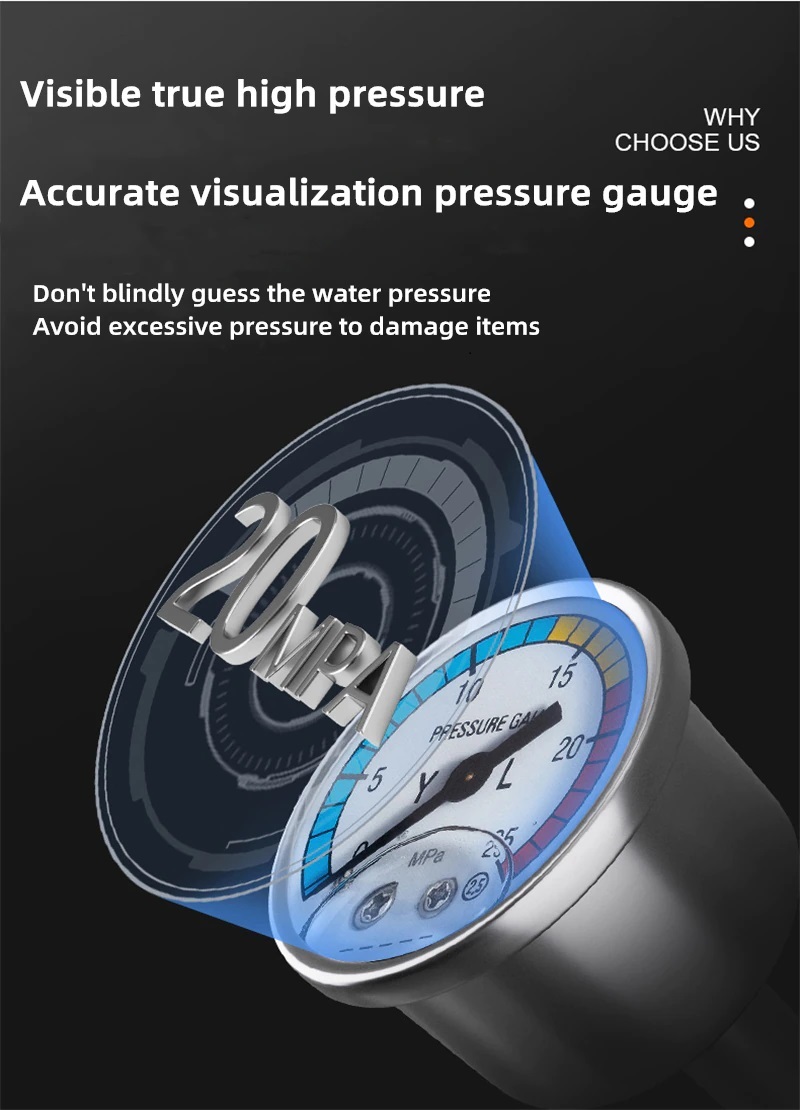

Visual pressure gauge

Visible true high pressure accurate visualization pressure gauge

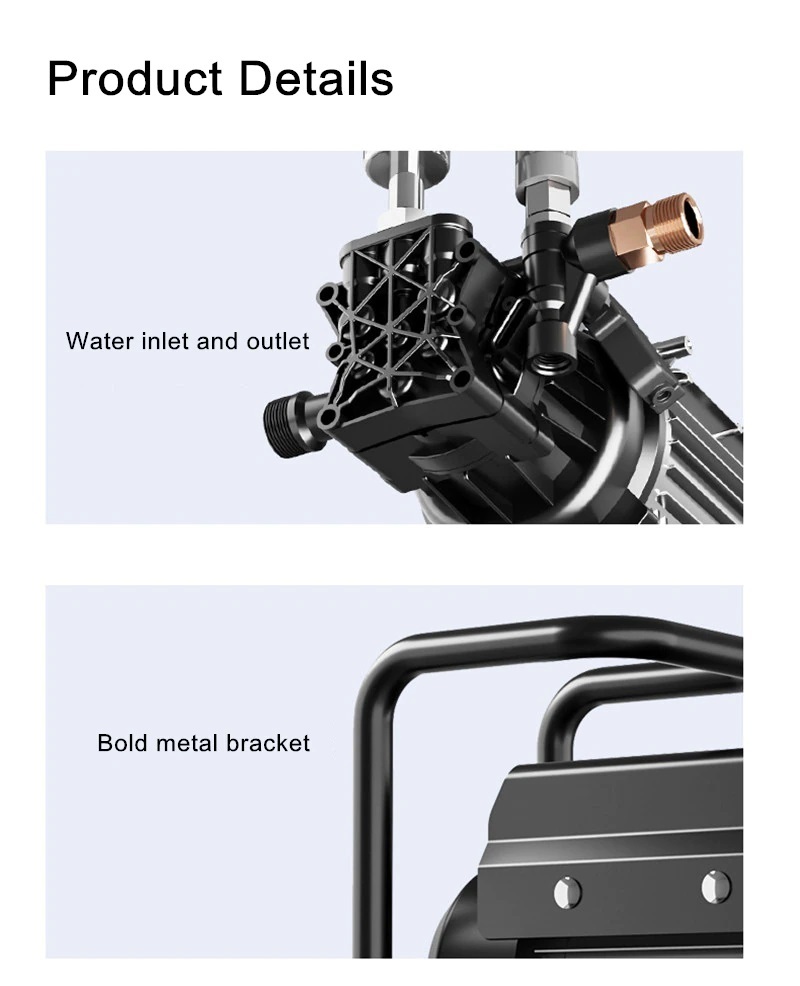

1. The water inlet and outlet are installed quickly and without water leakage
2. Bold metal bracket is durable Fully protect the machine

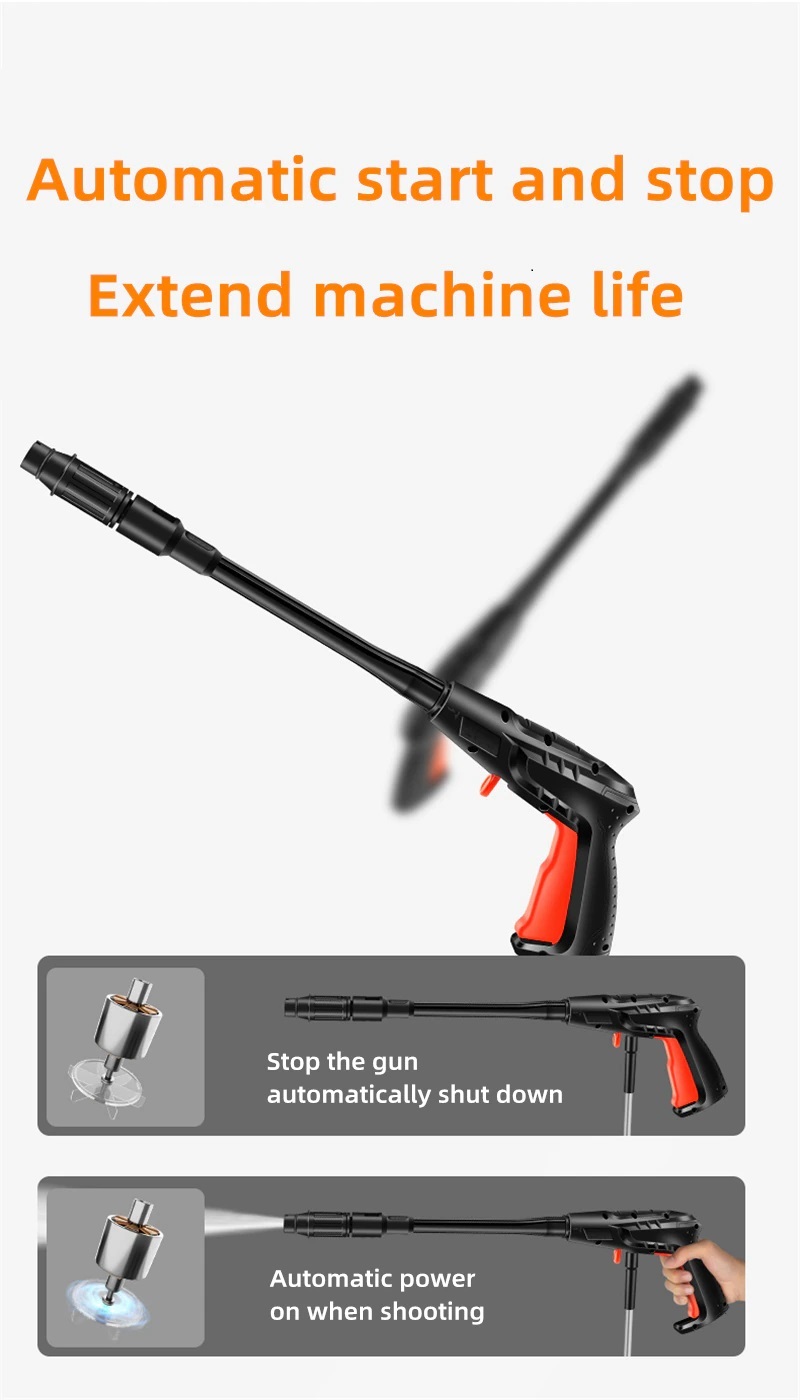

Automatic start and stop to extend the service life of the machine

The built-in "micro switch" is similar to the automatic start-stop function of high-end cars, avoiding invalid idling, saving water and electricity, and prolonging the service life of the machine.

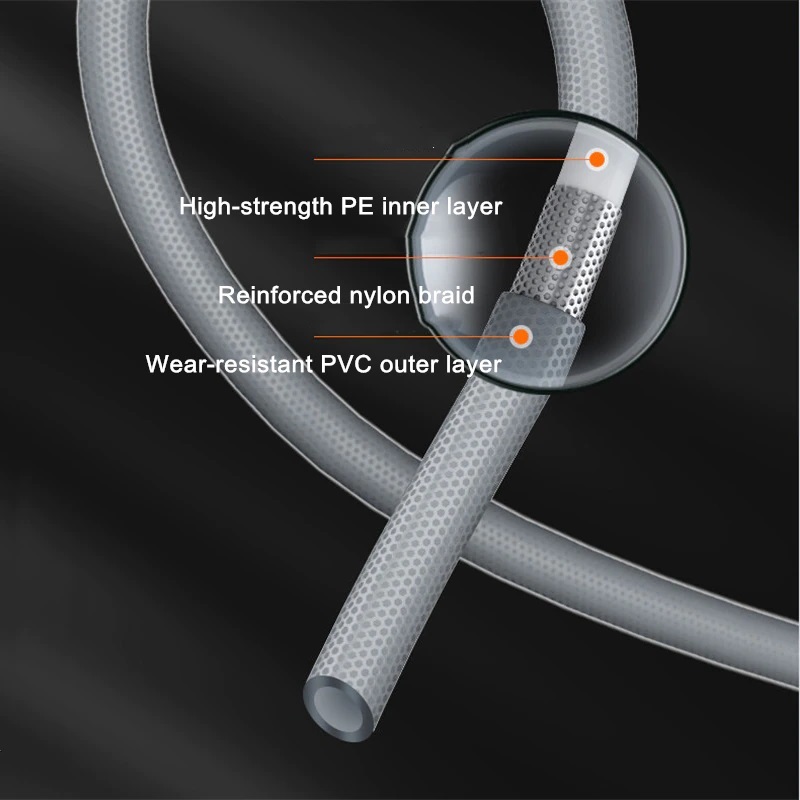

High pressure explosion-proof tube

High-quality composite high-pressure explosion-proof pipe
Can withstand up to 210KG shock pressure
Three-layer composite material high pressure explosion-proof water pipe, flexible and durable With copper alloy joints, high hardness and corrosion resistance

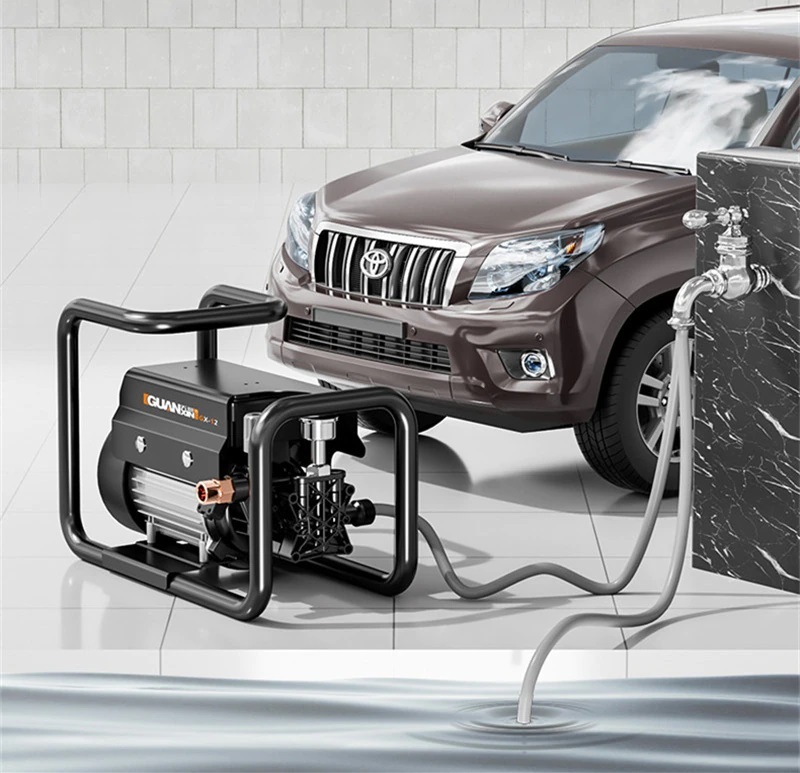

About water in and out

1. Receiving the faucet

2. Water buckets and pools absorb water

IPX5 waterproof

IPX5 waterproof grade waterproof switch is safer
Directly attacked by water in any direction, effectively waterproof

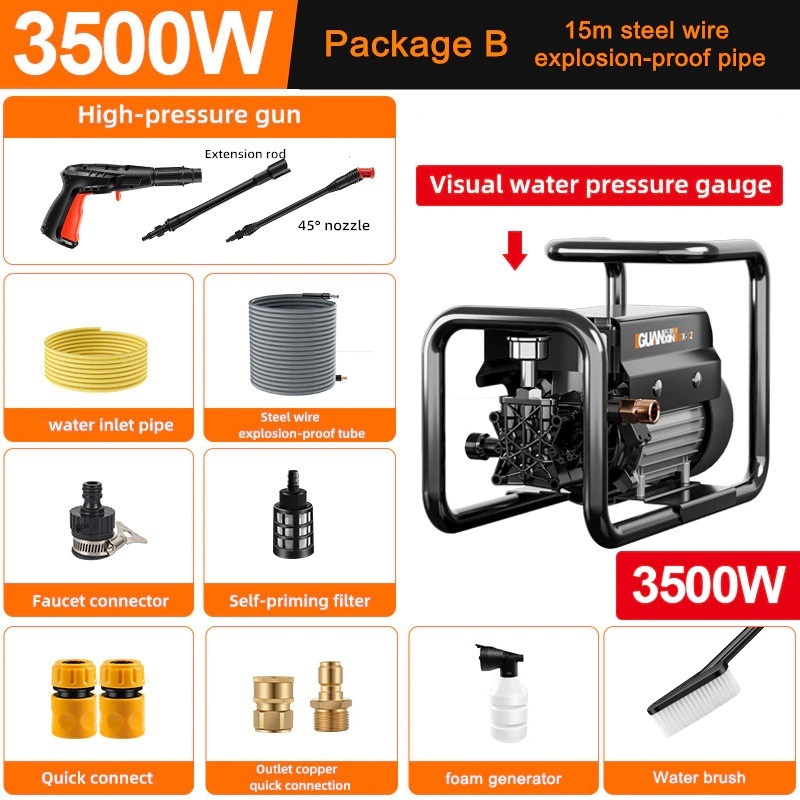

Package Details

Package B:
1*High pressure car washing machine (visual pressure gauge)
1*High pressure short gun
1*Extension rod
1*45° print head
1*15m steel wire explosion-proof pipe
1*1.5m water inlet pipe
1*faucet connector
1*filter carefully
2*Inlet quick connector
1*Outlet copper quick connector
1*foam generator
1*Water brush

COMMON TROUBLESHOOTING OF HOUSEHOLD CAR WASHERS

Before checking the machine problem, you must turn off the power switch, disconnect the plug, and release the water pressure in the high-pressure gun and high-pressure pipe to ensure the safety of the machine.

Q: The machine cannot be started

A: Check the power supply, plugs, wiring, etc., to ensure that the power supply is connected; it may be checked that the micro switch is loose, after unplugging the micro switch, rinse and wipe it clean, and reinsert it firmly

Q: The self-priming function is poor, and the machine does not absorb water for a long time.

A: Check the connection: if the self-priming joint is completely immersed in the water, whether the quick joint is tightly connected, whether the water pipe joint is broken, whether the threaded connection is misaligned; reconnect the water outlet, and then connect the water outlet pipe.

Q: No shutdown (automatic start-stop function is invalid)

A: 1. Air enters the pump during the water intake process, and the air in the pump is discharged

2. The safety valve of the machine is twisted or deformed by impact, replace the safety valve

3. The micro switch is damaged or loose and the contact is poor. Replace the micro switch or pull it out for cleaning and reinstall it tightly.

Q: The motor is running but the nozzle has irregular water output and repeated startup and shutdown

A: 1. The nozzle is blocked by debris, use cleaning to clean the nozzle

2. Check whether there is debris in the water inlet and outlet check valves, and clean them up

Q: When the machine is running, the high-pressure pipe vibrates, is numb, and the water is weak

A: 1. There is air in the water inlet pipe, exhaust the air. When using, follow the steps to wait for the water outlet to come out before connecting the water outlet pipe to start use

2. The water source is not clean / the filter has impurities, etc., use a clean water source, and replace the filter and filter joints in time

3. There is a check valve in the pump that is blocked by debris. Disassemble the pump to check whether there is any debris in the water inlet and outlet check valves, and clean up in time

Q: Oil/water leakage

A: 1. The internal sealing ring of the pump is damaged and deformed. 2. The seal is severely worn or the oil leaks from the oil cylinder, causing the machine to work without oil; disassemble the pump assembly to check the pump body and whether the seal on the pump seat is damaged. , Whether the oil seal at the connection between the oil cylinder and the pump seat is broken or deformed.

COMMON VOCABULARY ANALYSIS:

Maximum water outlet pressure/peak pressure/bearing pressure (similar to peak power): usually refers to the pressure when the blockage occurs, and the normal working pressure cannot be reached

Water output: usually refers to the water output of the water pump outlet (not the water ejected by the water gun)

Common pressure conversion: 1mpa=10bar≈14.5psi
